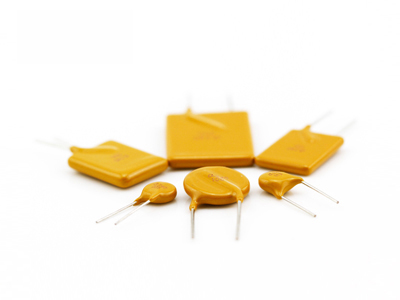

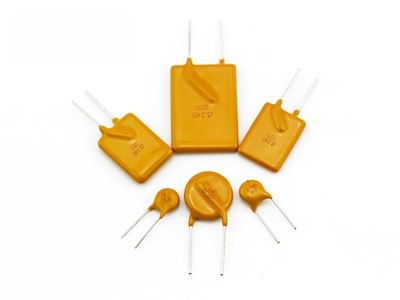

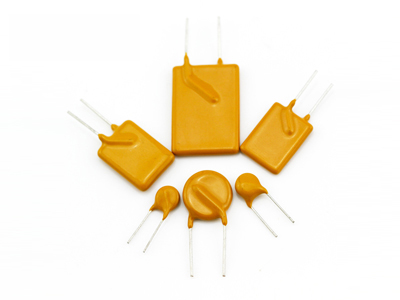

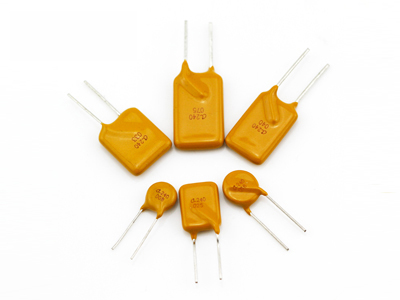

A240 Polyswitch PPTC Resettable Fuse
Line voltage power supplyTransformers and appliancesGeneral Electronics
- Brand： JDT FUSE
- Classification： DIP PTC
- Voltage： 240V
- Current： 0.05A-2A
Electrical properties
Model | V max | I hold | I trip | Pd | Maximum Time To Trip | Rimin | Rimax | R1max | |
(Vdc) | (A) | (A) | (W) | Current(A) | Time(Sec) | (Ω) | (Ω) | (Ω) | |
A240-005 | 240 | 0.05 | 0.12 | 0.7 | 0.25 | 15.0 | 18.0 | 31.00 | 50.0 |
A240-008 | 240 | 0.08 | 0.19 | 0.8 | 0.40 | 15.0 | 7.40 | 12.00 | 20.0 |
A240-012 | 240 | 0.12 | 0.30 | 1.0 | 0.60 | 15.0 | 3.00 | 6.500 | 12.0 |
A240-016 | 240 | 0.16 | 0.37 | 1.4 | 0.80 | 15.0 | 2.50 | 4.100 | 7.80 |
A240-025 | 240 | 0.25 | 0.56 | 1.5 | 1.25 | 18.5 | 1.30 | 2.100 | 4.00 |
A240-033 | 240 | 0.33 | 0.74 | 1.7 | 1.65 | 21.0 | 1.20 | 2.000 | 3.50 |
A240-040 | 240 | 0.40 | 0.90 | 2.0 | 2.00 | 24.0 | 0.81 | 1.500 | 2.50 |
A240-055 | 240 | 0.55 | 1.25 | 3.4 | 2.75 | 26.0 | 0.45 | 0.730 | 1.45 |
A240-065 | 240 | 0.65 | 1.30 | 2.8 | 3.25 | 20.0 | 0.40 | 0.680 | 1.10 |
A240-075 | 240 | 0.75 | 1.50 | 2.6 | 3.75 | 18.0 | 0.20 | 0.334 | 0.60 |
A240-100 | 240 | 1.00 | 2.00 | 2.9 | 5.00 | 21.0 | 0.12 | 0.180 | 0.32 |
A240-125 | 240 | 1.25 | 2.50 | 3.3 | 6.25 | 23.0 | 0.10 | 0.150 | 0.30 |
A240-200 | 240 | 2.00 | 4.00 | 4.5 | 10.0 | 28.0 | 0.089 | 0.131 | 0.22 |

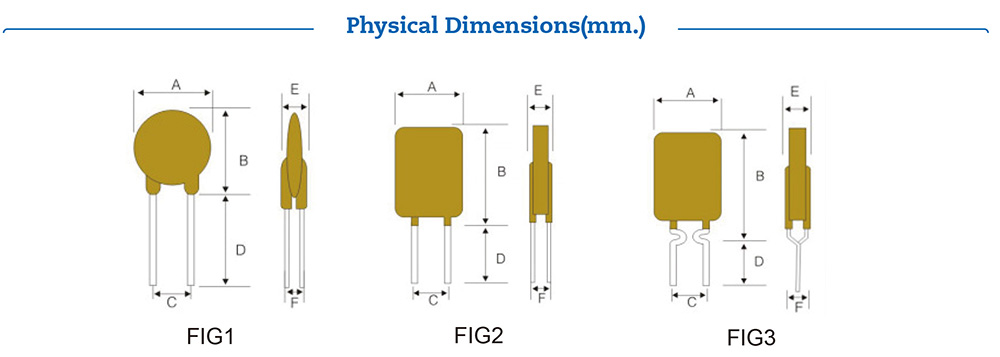

Model | A | B | C | D | E | F | Lead | FIG | |
Max. | Max. | Min. | Max. | Min. | Max. | Typ. | φ | ||
A240-005 | 8.3 | 10.7 | 4.3 | 5.8 | 7.6 | 3.8 | 1.2 | 0.5 | 1 |
A240-008 | 8.3 | 10.7 | 4.3 | 5.8 | 7.6 | 3.8 | 1.2 | 0.5 | 1 |
A240-012 | 8.3 | 10.7 | 4.3 | 5.8 | 7.6 | 3.8 | 1.2 | 0.5 | 1 |
A240-016 | 9.9 | 13.8 | 4.3 | 5.8 | 7.6 | 3.8 | 1.2 | 0.6 | 1 |
A240-025 | 9.6 | 18.8 | 4.3 | 5.8 | 7.6 | 3.8 | 3.4 | 0.6 | 3 |
A240-033 | 12.5 | 19.0 | 4.3 | 5.8 | 7.6 | 3.8 | 3.4 | 0.8 | 2 |
A240-040 | 11.5 | 20.9 | 4.3 | 5.8 | 7.6 | 4.1 | 3.4 | 0.8 | 2 |
A240-055 | 14.0 | 21.7 | 4.3 | 5.8 | 7.6 | 4.8 | 3.4 | 0.8 | 2 |
A240-075 | 12.0 | 22.0 | 4.3 | 5.8 | 7.6 | 4.1 | 3.4 | 0.8 | 2 |
A240-100 | 14.5 | 19.0 | 9.4 | 10.9 | 7.6 | 4.1 | 3.4 | 0.8 | 1 |
A240-125 | 14.0 | 21.7 | 4.3 | 5.8 | 7.6 | 4.1 | 3.4 | 0.8 | 2 |
A240-135 | 16.3 | 21.7 | 4.3 | 5.8 | 7.6 | 4.1 | 3.4 | 0.8 | 2 |
A240-200 | 23.5 | 31.8 | 9.4 | 10.9 | 7.6 | 4.1 | 3.4 | 0.8 | 2 |
RoHS
