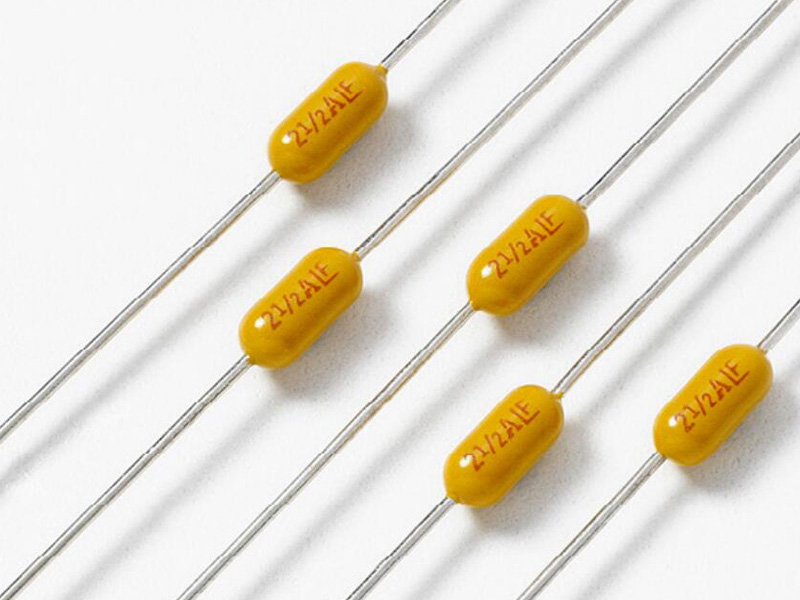

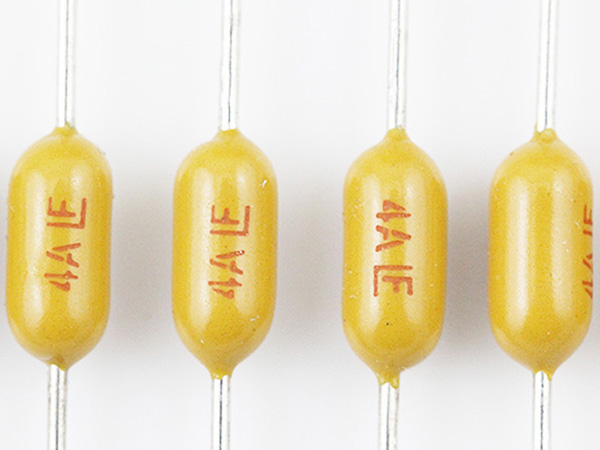

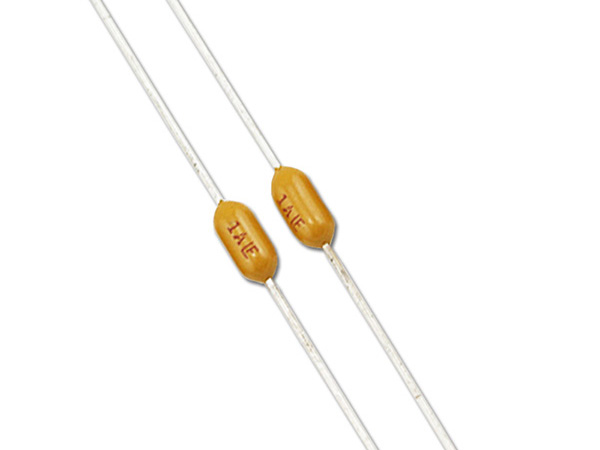

473 Series, PICO? II Slo-Blo? Fuse
The PICO? II Slo-Blo? Fuse combines time-delay performance characteristics with the proven reliability of a PICO? Fuse.
- Brand： Littelfuse
- Classification： PICO? II
- Voltage： 125V
- Current： 0.375-7A
Ampere Rating (A) | Amp Code | Max Voltage Rating (V) | Interrupting Rating | Nominal Resistance (Ohms) | Nominal Melting I2t (A2sec) | Nom Voltage Drop (mV) |
0.375 | .375 | 125 | 50A@125VAC/DC | 1.7550 | 0.085 | 0.840 |
0.500 | .500 | 125 | 1.1370 | 0.210 | 0.775 | |
0.750 | .750 | 125 | 0.4900 | 0.760 | 0.429 | |
1.00 | 001. | 125 | 0.3000 | 2.010 | 0.353 | |
1.50 | 01.5 | 125 | 0.1170 | 3.940 | 0.208 | |
2.00 | 002. | 125 | 0.0720 | 7.600 | 0.180 | |
2.25 | 2.25 | 125 | 0.0640 | 9.280 | 0.164 | |
2.50 | 02.5 | 125 | 0.0520 | 13.00 | 0.153 | |
3.00 | 003. | 125 | 0.0380 | 21.00 | 0.140 | |
3.50 | 004. | 125 | 0.0240 | 26.80 | 0.094 | |
4.00 | 03.5 | 125 | 0.0200 | 35.00 | 0.086 | |
5.00 | 005. | 125 | 0.0133 | 54.80 | 0.074 | |
7.00 | 007. | 125 | 0.0092 | 105.00 | 0.070 |
