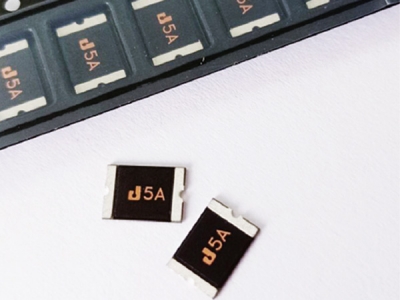

2920SL系列低內阻自恢復保險絲
ASMD2920SL系列提供微型表面貼裝過流保護，保持電流范圍為5.0-12A。保險絲內阻小是其最大的優勢， 該系列適廣泛應用于空間有限的現代電子產品中。
- 品牌： 集電通/JTDFUSE
- 分類： 低阻貼片自恢復保險絲
- 最大電壓： 16/24V
- 額定電流： 5A ~12A
ASMD2920SL規格書
電氣特性25℃
Model | Vmax (Vdc) | Imax (A) | Ihold @25℃ (A) | Itrip @25℃ (A) | Pd typ. (W) | Maximum Time To Trip | Resistance | ||
Current (A) | Time (Sec.) | Rimin (Ω) | R1max (Ω) | ||||||
ASMD2920SL500 | 16 | 50 | 5.0 | 10.0 | 1.6 | 25.0 | 5.0 | 0.0015 | 0.014 |
ASMD2920SL500-24V | 24 | 50 | 5.0 | 10.0 | 1.6 | 25.0 | 5.0 | 0.0015 | 0.014 |
ASMD2920SL600 | 16 | 50 | 6.0 | 12.0 | 1.6 | 30.0 | 5.0 | 0.0015 | 0.012 |
ASMD2920SL600-24V | 24 | 50 | 6.0 | 12.0 | 1.6 | 30.0 | 5.0 | 0.0015 | 0.012 |
ASMD2920SL700 | 16 | 50 | 7.0 | 14.0 | 1.6 | 35.0 | 5.0 | 0.0007 | 0.010 |
ASMD2920SL700-24V | 24 | 50 | 7.0 | 14.0 | 1.6 | 35.0 | 5.0 | 0.0007 | 0.010 |
ASMD2920SL800 | 16 | 50 | 8.0 | 16.0 | 1.6 | 40.0 | 5.0 | 0.0006 | 0.008 |
ASMD2920SL800-24V | 24 | 50 | 8.0 | 16.0 | 1.6 | 40.0 | 5.0 | 0.0006 | 0.008 |
ASMD2920SL900 | 16 | 50 | 9.0 | 18.0 | 1.6 | 45.0 | 5.0 | 0.0005 | 0.007 |
ASMD2920SL900-24V | 24 | 50 | 9.0 | 18.0 | 1.6 | 45.0 | 5.0 | 0.0005 | 0.007 |
ASMD2920SL1000 | 16 | 50 | 10.0 | 20.0 | 1.6 | 50.0 | 5.0 | 0.0005 | 0.006 |
ASMD2920SL1000-24V | 24 | 50 | 10.0 | 20.0 | 1.6 | 50.0 | 5.0 | 0.0005 | 0.006 |
ASMD2920SL1100 | 16 | 50 | 11.0 | 22.0 | 1.6 | 55.0 | 5.0 | 0.003 | 0.005 |
ASMD2920SL1100-24V | 24 | 50 | 11.0 | 22.0 | 1.6 | 55.0 | 5.0 | 0.003 | 0.005 |
ASMD2920SL1200 | 16 | 50 | 12.0 | 24.0 | 1.6 | 60.0 | 5.0 | 0.003 | 0.004 |
ASMD2920SL1200-24V | 24 | 50 | 12.0 | 24.0 | 1.6 | 60.0 | 5.0 | 0.003 | 0.004 |
V max = 元件在額定電流下能承受的最大電壓.
I max =元件在額定電壓下能承受的最大電流.
I hold = 在25℃靜止空氣環境中,產品不動作的最大電流.
I trip = 在25℃靜止空氣環境中,最小動作電流.
Pd =在25℃靜止空氣環境中,產品動作狀態下的消耗功率.
Ri min/max =25℃溫度條件下的初始阻值(焊接前).
R1max = 25℃溫度條件下,焊接一小時後的最大阻值.
注意 : 超出指定額定值的操作，可能會導致?lián)p傷和可能產生電弧和火焰.

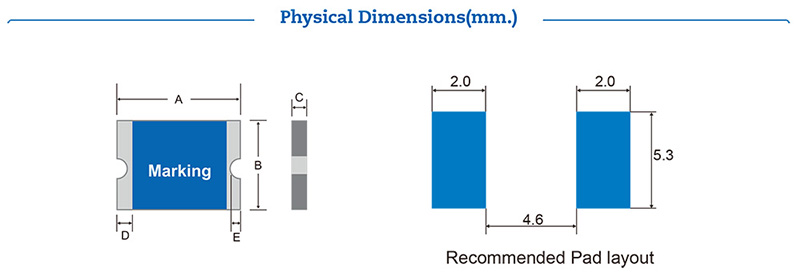

Model | A | B | C | D | E | ||||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | |
| ASMD2920SL500 | 6.73 | 7.98 | 4.80 | 5.44 | 0.35 | 0.85 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL500-24V | 6.73 | 7.98 | 4.80 | 5.44 | 0.35 | .85 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL600 | 6.73 | 7.98 | 4.80 | 5.44 | 0.35 | .85 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL600-24V | 6.73 | 7.98 | 4.80 | 5.44 | 0.35 | .85 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL700 | 6.73 | 7.98 | 4.80 | 5.44 | 0.60 | 1.00 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL700-24V | 6.73 | 7.98 | 4.80 | 5.44 | 0.60 | 1.00 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL800 | 6.73 | 7.98 | 4.80 | 5.44 | 0.60 | 1.00 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL800-24V | 6.73 | 7.98 | 4.80 | 5.44 | 0.60 | 1.00 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL900 | 6.73 | 7.98 | 4.80 | 5.44 | 0.80 | 1.30 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL900-24V | 6.73 | 7.98 | 4.80 | 5.44 | 0.80 | 1.30 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL1000 | 6.73 | 7.98 | 4.80 | 5.44 | 0.80 | 1.30 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL1000-24V | 6.73 | 7.98 | 4.80 | 5.44 | 0.80 | 1.30 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL1100 | 6.73 | 7.98 | 4.80 | 5.44 | 1.00 | 1.50 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL1100-24V | 6.73 | 7.98 | 4.80 | 5.44 | 1.00 | 1.50 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL1200 | 6.73 | 7.98 | 4.80 | 5.44 | 1.00 | 1.50 | 0.30 | 2.50 | 0.25 |
| ASMD2920SL1200-24V | 6.73 | 7.98 | 4.80 | 5.44 | 1.00 | 1.50 | 0.30 | 2.50 | 0.25 |
